Freewing A-10 Thunderbolt II V3 Twin 64mm ARF Plus Jet
A-10 Thunderbolt II V3 Twin 64mm High Performance ARF Plus Jet
1, it requires 6-7 Channel radio (7 for thrust reversing)
2, it requires 6-7 Channel receiver (7 for thrust reversing
3, it requires 6 Cell 22.2V 4000 - 5000mAh LiPo Battery with EC5 Connector and 6 Cell compatible battery charger
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This Item is available in stock，we will ship the package box within 48 hours after the buyers pay money via paypal.

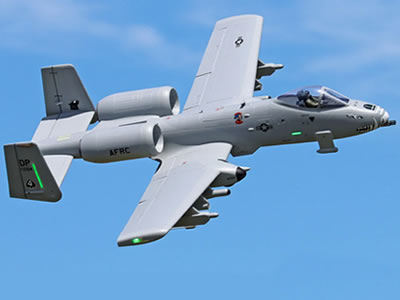

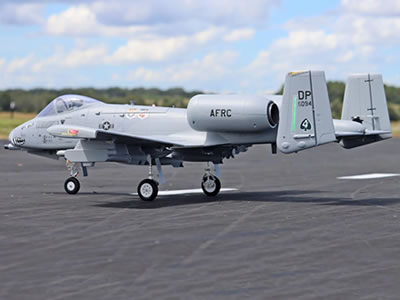

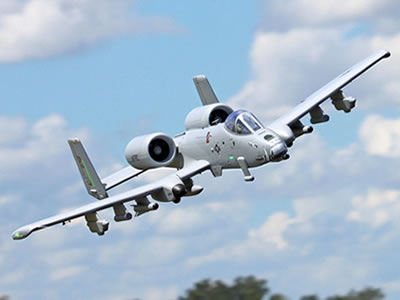

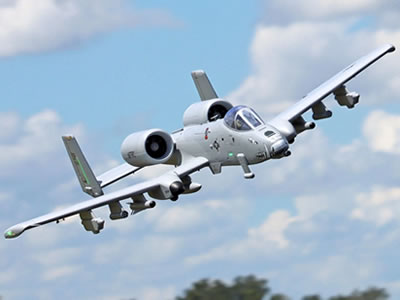

Freewing A-10 Thunderbolt II V3 Twin 64mm High Performance PNP EDF Jet is a 100% new plane that does not share a single part with the prior version. Calling this plane a A10 V3 really does not do this A-10 justice since it is 100% new. Renowned for its battlefield dominance, the A-10 Thunderbolt II, affectionately known as the "Warthog," is one of the most iconic Close Air Support aircraft ever built. Freewing proudly presents the all-new A-10 Thunderbolt II V3 Twin 64mm, completely redesigned and retooled with larger dimensions, updated aerodynamics and stunning scale fidelity. This model combines jaw-dropping realism and commanding presence with a thrilling EDF flight experience rarely seen at this size.
Setup and transport are effortless with screwless, quick-release wings that lock securely in place and auto-connect the electronics. A spring-loaded battery hatch and durable plastic-cladded compartment make battery changes fast and hassle-free, while glueless assembly and simplified wiring get you in the air even sooner.
Scale realism is unmatched, with CNC-machined shock-absorbing retracts, highly detailed panel lines and rivets, and authentic gear doors. A daylight-bright LED lighting package, including formation, navigation, strobe, and nose-gear landing lights, brings every detail to life, while the full sliding-rail armament package and hand-painted pilot figure add mission-ready authenticity.
In the air, the Freewing A-10 V3 shines during scale maneuvers, from low-level Close Air Support runs and precision passes to tight turns and coordinated formation flying. Every flight showcases the Warthog’s commanding presence and immersive EDF performance, making this all-new model the ultimate scale experience.
Screwless, Quick-Release Wings Forget hunting for tools or tiny screws. With a press of the push-button latches the wings snap firmly into place, and the built-in connectors automatically hook up the electronics. Setup and teardown become a quick, satisfying part of every flight session. |
Realistic Scale Armament The Freewing A-10 V3 twin 64mm jet comes fully loaded with a complete suite of scale weapons that slide effortlessly into place on the rail system. Each piece attaches and removes in seconds, letting you outfit the Warthog for a mission-ready look or strip it down for lighter, high-performance sorties. |
Brilliant Scale Lighting Package The fully integrated daylight-bright LED lighting system brings the A-10 to life with incredible scale accuracy. Formation, landing, navigation, strobe, and beacon lights enhance realism and make every detail stand out, both in the air and on the ground. |
Easy-Install Motor Pod The motor pod screws in place easily, and the neatly organized motor wiring makes connecting both motors fast and simple. |
Scale Retracts with CNC-Machined Struts The retractable landing gear features CNC-machined struts with built-in shock absorption for smooth, realistic operation. Every takeoff and landing looks and feels true to scale, enhancing the authenticity of the A-10. |
Highly Detailed Surface The A-10 V3 Thunderbolt II V3 64mm jet ’s surface bursts with scale realism, featuring crisp panel lines, authentic rivets, and finely crafted details. Every curve and contour captures the look of the full-size aircraft, making it a standout on the ground and in the air. |
Features:
- Completely redesigned from the ground up, featuring all-new molds, larger dimensions, and updated aerodynamics for improved performance and scale accuracy.
- Quick-release wings with auto-connect wiring make field assembly fast and convenient
- Includes an exquisite LED lighting package, including navigation lights, strobe, nose gear mounted landing light as well as formation lights to further enhance scale realism
- The highly detailed surface features crisp panel lines, realistic rivets, and other scale elements that showcase impressive accuracy.
- Scale retracts with CNC-machined, shock-absorbing struts and authentic gear doors enhance realism and add a true-to-life appearance.
- Included scale armament package allows you to outfit the A-10 for superb scale realism and is easily installed and removed with a simple sliding rail system.
- Plastic-cladded battery compartment accommodates larger batteries and provides enhanced durability
- Glueless assembly and simplified wiring provide a much faster and more convenient initial setup
- Thrust reversing capable ESCs enable shorter landings and greater ground control
- 2 units 2840-2200Kv Outrunner motors combined with 2 units 12-blade 64mm EDF’s provide incredible thrust, performance, and sound.
- Spring-loaded battery and electronics hatch for quick, hassle-free battery access
- Hand painted pilot figure adds a finishing touch to the scale details.
- Clearly marked CG points on the wings make it quick and simple to check the center of gravity for perfect balance.
- Ball linkages on all control surfaces provide precise handling
- Long-lasting nylon hinges built for reliable performance
- Officially licensed by Northrop Grumman
Includes:
- Freewing A-10 Thunderbolt II V3 Twin 64mm EDF ARF Plus Jet
- Electronic, retractable landing gear (Pre-installed)
- All Servos (Pre-installed)
Requires:
- 2 units 12-blade 64mm EDF Power Systems (Not Pre-installed)
- 2 units x 2840-2200Kv Outrunner Motors (Not Pre-installed)
- 2 units x 50A ESCs with reverse thrust and EC5 connector (Not Pre-installed)
- 6-7 Channels radio (7 Channels for thrust reversing) - select a minimum 6 channel radio
- 6-7 Channels receiver - (7 Channels for thrust reversing) - select a minimum 6 channel receiver
- 6 Cell 22.2V 4000 - 5000mAh LiPo Battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger
Scale |
1/14 |
Wingspan |
1270mm / 50.0in |
Length |
1143mm / 45.0in |
Flying Weight |
2212g / 4lbs 14oz without battery and without armament |
CG |
74mm from the leading edge of the wing at the root |
Power System |
2x 2840-2200Kv Outrunner Motors w/64mm 12-blade Fan |
Speed Control |
2x 50A Brushless ESCs with Thrust Reversing |
Propeller / EDF |
2x 64mm EDF with 12-Blade Fan |
Servos |
|
Landing Gear |
CNC-Machined Aluminum, Shock Absorbing, Retractable Landing Gear |
Required Battery |
1x 6S 22.2V 4000-5000mAh LiPo with EC5 Connector (EPR50006) |
Required Radio |
6-7 Channel radio (7 channels for reverse thrust) |
Rudder |
Yes |
Flaps |
Yes |
Ailerons |
Yes |
Lights |
Yes |
Hinge Type |
Nylon hinges on all control surfaces |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoors |
Recommended Runway Surface |
Well manicured, short grass and hard surfaces |
Freewing A-10 Thunderbolt II V3 Twin 64mm High Performance PNP EDF Jet manual Download URL:
https://www.freewing-model.com/download/freewing-a-10-v3-64mm-manual.pdf
